Application of ZBM series inclined roller sand press:
For sand making operation of various materials with medium or above hardness with compressive strength less than 300MPa, Pratt hardness 5-16 and humidity less than 10%. Such as: pebbles, rocks, steel slag, iron ore tailings, construction recycling materials, etc.
Principle of inclined roller sand press:
Based on the principle of material layer crushing, Roller sand press mainly squeezes and crushes materials through the high pressure formed between two relatively rotating rollers. The material enters the roller press from the upper feed port and forms a material layer between the two rollers. As the rollers rotate, the material is subjected to high pressure and is gradually compressed, crushed and ground. Finally, the crushed material is discharged from the bottom. Since it is crushed by the material layer, the impact force on the material is small, thereby reducing dust and energy waste.
1.The stable material layers are prepared and fed into the crushing zone.
2.The upper roller applies crushing pressure.
3.The lower roller is driving directly through the reducer.
4.The thickness of the material layers is controlled according to different crushing parameters such as material moisture content, fineness and the output.
Features of inclined roller sand press:
1. High efficiency and energy saving
The Inclined roller sand press utilizes the principle of material layer crushing during its working process. Compared with traditional crushing equipment, the Inclined roller sand press has higher energy utilization efficiency. The efficient crushing method of Inclined roller sand press greatly reduces unit energy consumption and effectively reduces production costs.
2. Large crushing ratio
Roller sand press can effectively achieve deep crushing of materials through high-pressure extrusion force, and the crushing ratio (the ratio of the original particle size of the material to the particle size after crushing) is large. Roller sand press can break large materials into finer particles at one time, reducing the need for multi-stage crushing.
3. The product has fine particle size and even distribution.
Since the Roller sand press laminated and crushes the materials, the finished particles of the Roller sand press are fine in size and evenly distributed. This gives the Roller Sand Press a significant advantage in processes that require fine grinding and can meet the requirements of high-quality products.
4. Little wear and tear
Inclined roller sand press is designed to cause less wear and tear while working. First, the material forms a material layer between the rollers, and the material in direct contact with the rollers is reduced, reducing the wear of the rollers. Secondly, the material of the rollers is usually specially treated to have high wear resistance, thus extending the service life of the equipment.

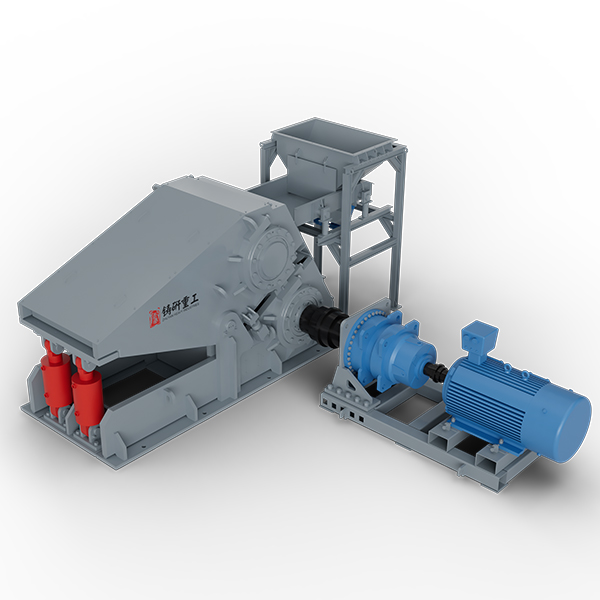

Product structure:
Technical parameters of inclined roller sand press：
Technical parameters of Inclined roller sand press | ||||||
Model | Diameter of roller (mm) | Width of roller (mm) | Power (kW) | Feed size (mm) | Product size (mm) | Throughput (mtph) |
ZBM100 | 1000 | 600 | 200 | ≤25 | ≤5 | 70-150 |
ZBM100L | 1000 | 1000 | 315 | ≤25 | ≤5 | 110-240 |
ZBM128 | 1280 | 800 | 450 | ≤30 | ≤5 | 150-300 |
ZBM128L | 1280 | 1000 | 630 | ≤30 | ≤5 | 190-350 |
