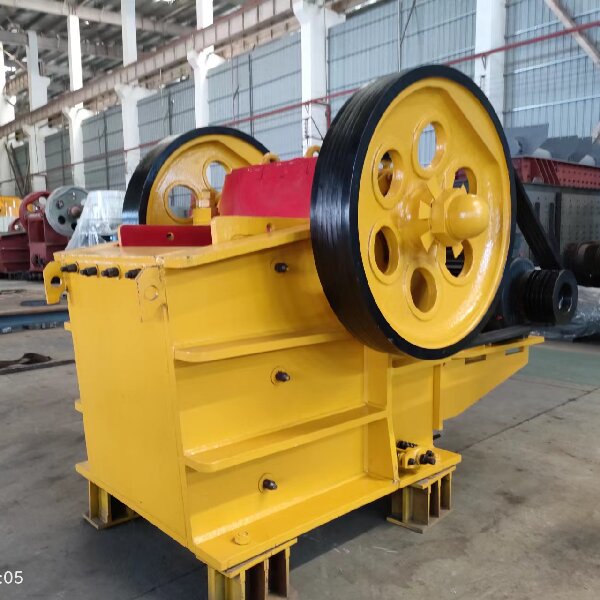

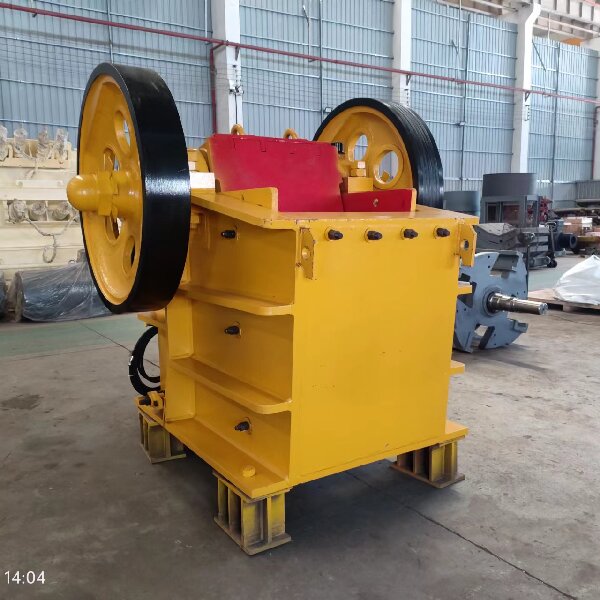

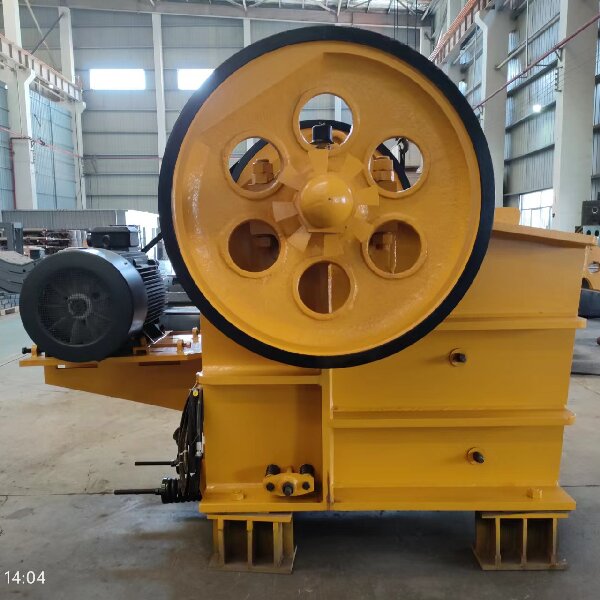

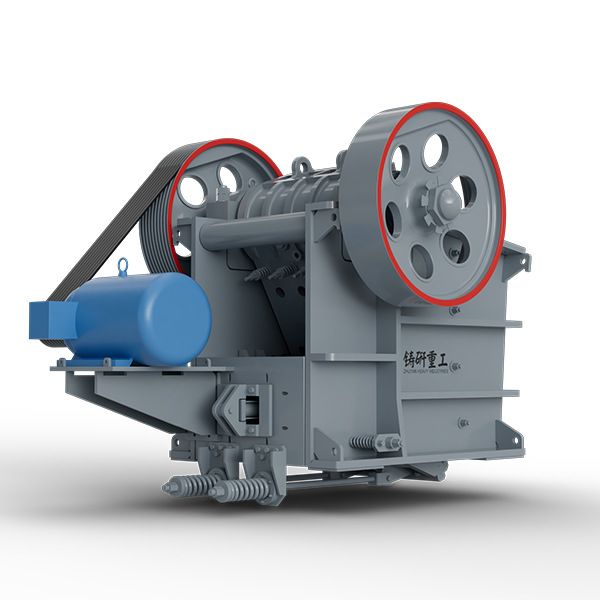

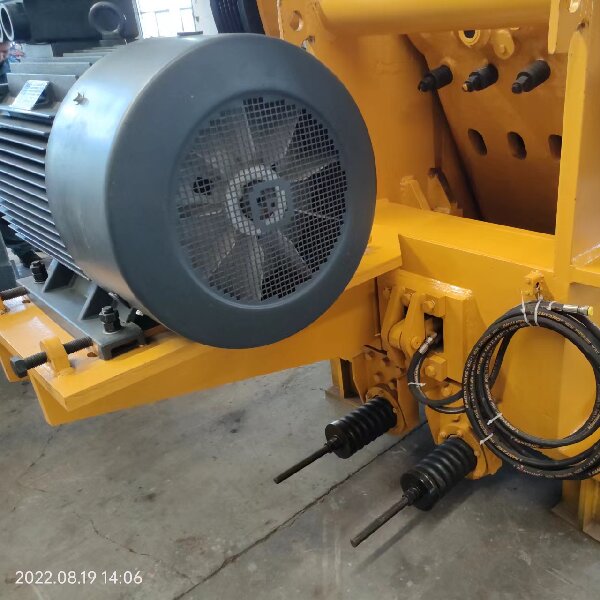

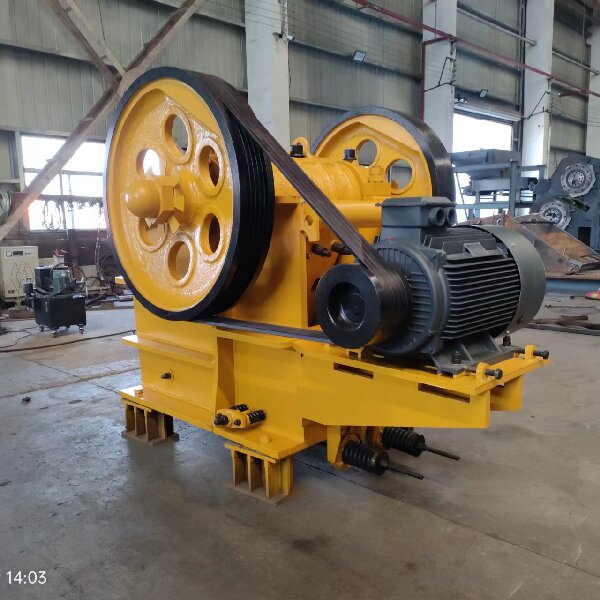

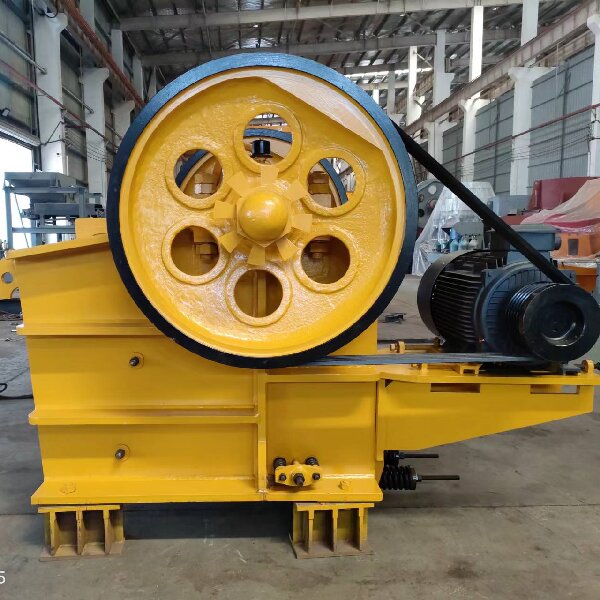

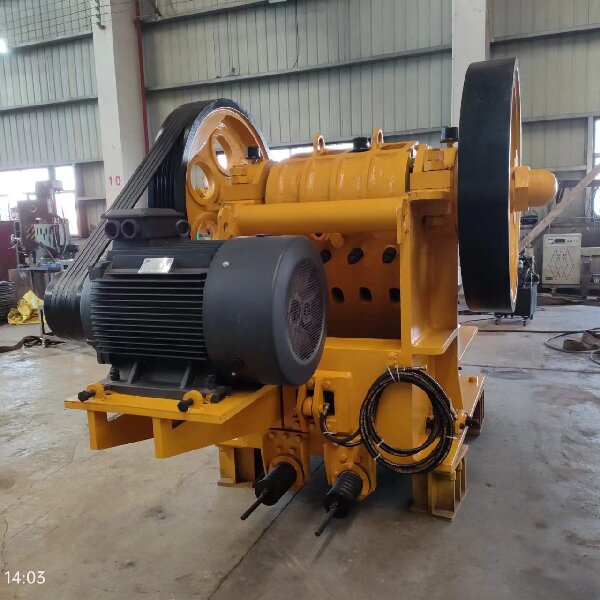

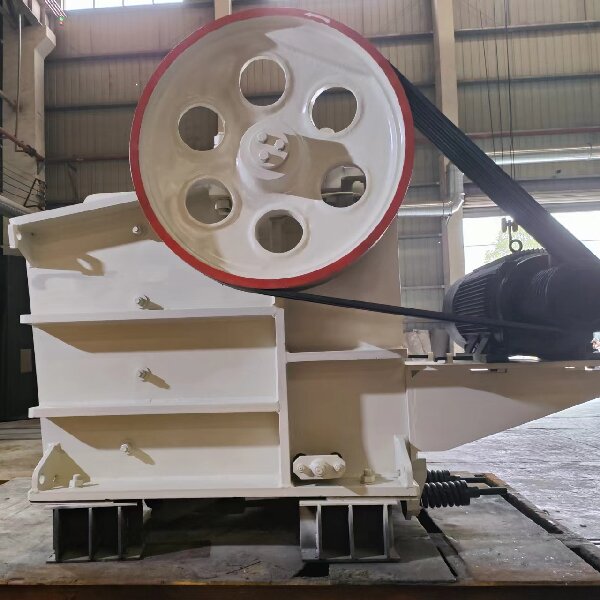

Product presentation of ZJ series hydraulic jaw crusher：

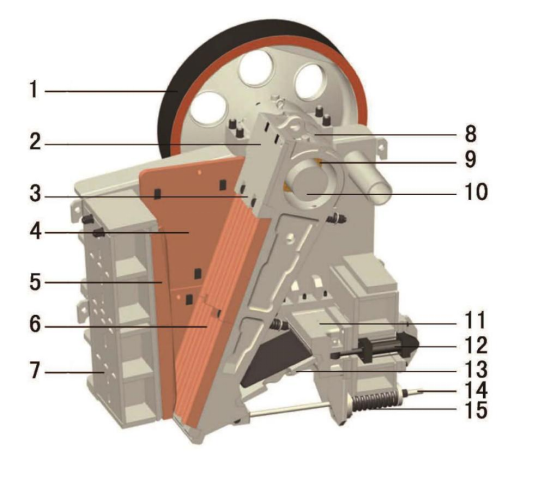

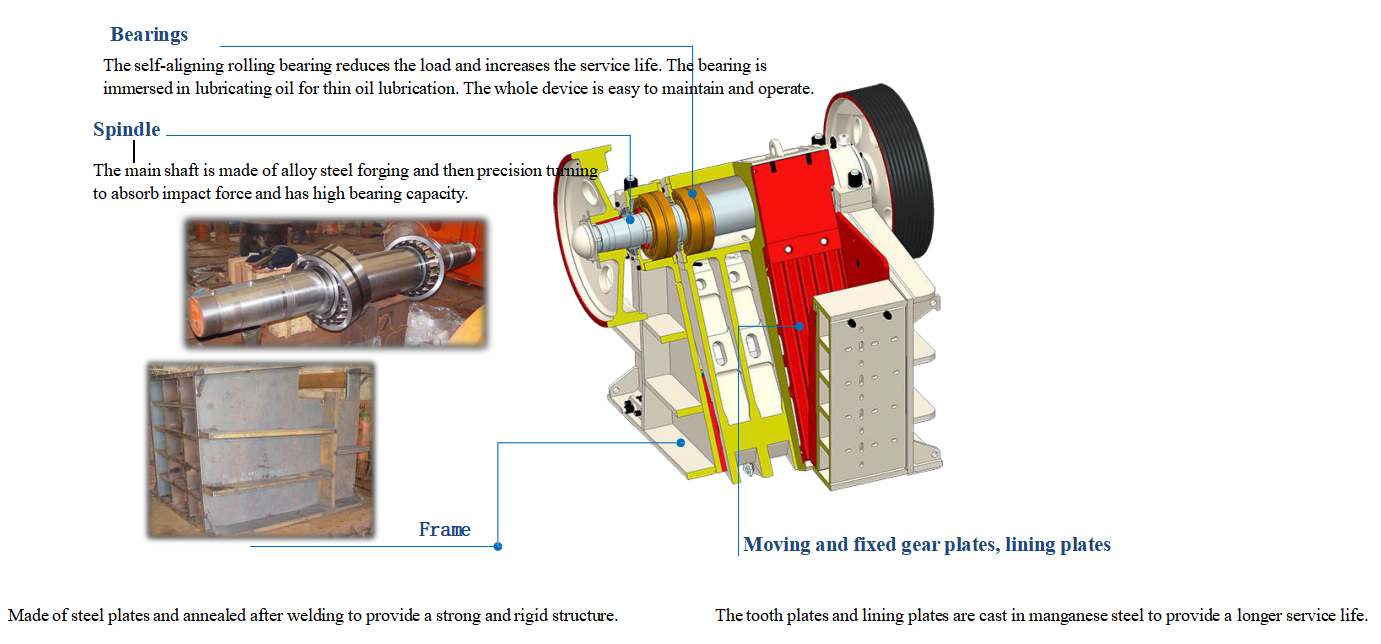

The structure of jaw crusher mainly consists of frame, eccentric shaft, large pulley, flywheel, movable jaw, side guard plate, toggle plate, toggle plate back seat, gap adjustment cylinder, reset spring, fixed jaw plate and movable jaw plate, among which the toggle plate also plays an insurance role.
| 1. Flywheel/grooved pulley | 2. Swing jaw guard | 3. Swing jaw plate | 4. Cheek plate | 5. Fixed tooth plates |
| 6. Swing tooth plates | 7. Frame assembly | 8. Swing jaw assembly | 9. Bearings | 10. Spindle |
| 11. Adjustable seat | 12. Hydraulic cylinder | 13. Toggle plates | 14. Tie rod | 15. Tie rod springs |
Product mix of ZJ series hydraulic jaw crusher ：
Product characteristics of ZJ series hydraulic jaw crusher:
1.The jaw crusher frame is designed to be heavy-duty, with high-quality steel plates welded in CO2 protection and annealed, making it sturdy and durable;
2. The eccentric shaft of the hydraulic crusher is forged and machined from alloy steel, with high load-bearing capacity;
3. The hydraulic crusher uses high-quality bearings, which are lubricated with thin oil, have a long service life, run smoothly, and are easy to maintain;
Product Parameter of ZJ series hydraulic jaw crusher：
Model | Feed mouth size(mm） | power（kW） | weight （kg） | Crushing capacity (MTPH) | |||||||||||
Discharge gap （mm） | |||||||||||||||
30 | 40 | 50 | 70 | 80 | 100 | 125 | 150 | 200 | 225 | 250 | 300 | ||||
ZJ2416 | 600 x 400 | 37 | 6320 | 26 | 38 | 45 | 60 | 75 | |||||||
ZJ3020 | 750 x 500 | 55 | 8750 | 40 | 60 | 70 | 90 | 112 | 130 | ||||||
ZJ3624 | 900 x 600 | 75 | 14000 | 105 | 130 | 160 | 182 | ||||||||
ZJ4230 | 1,050 x 750 | 110 | 22500 | 180 | 210 | 237 | 294 | ||||||||
ZJ4832 | 1,200 x 800 | 132 | 26650 | 210 | 250 | 280 | 320 | 350 | |||||||
ZJ4840 | 1,200 x 1,000 | 160 | 44500 | 265 | 302 | 370 | 402 | ||||||||
ZJ5432 | 1,350 x 800 | 160 | 27770 | 250 | 300 | 340 | 420 | 450 | |||||||
ZJ6040 | 1,500 x 1,000 | 200 | 50380 | 310 | 350 | 440 | 480 | 510 | |||||||
ZJ6048 | 1,500 x 1,200 | 250 | 78000 | 415 | 500 | 540 | 580 | 630 | |||||||
