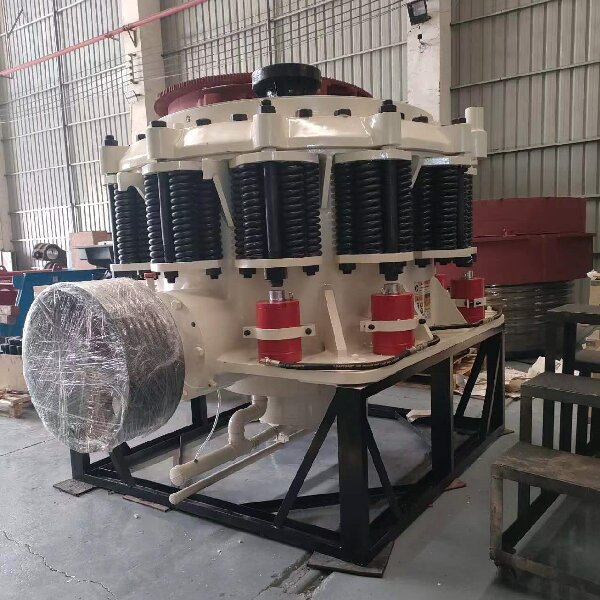

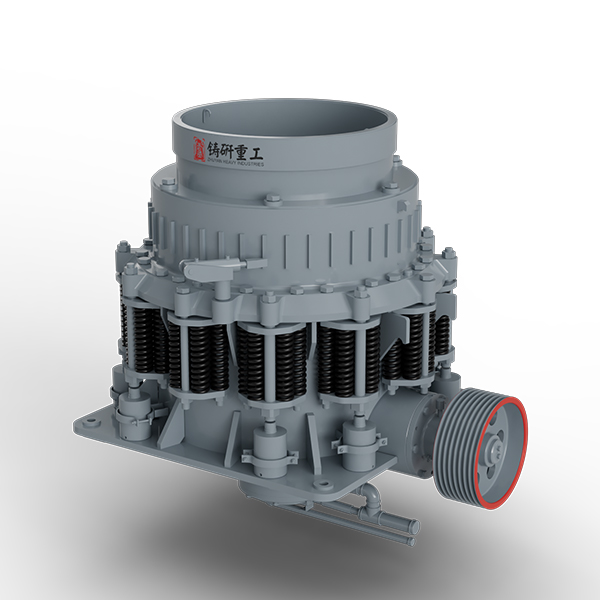

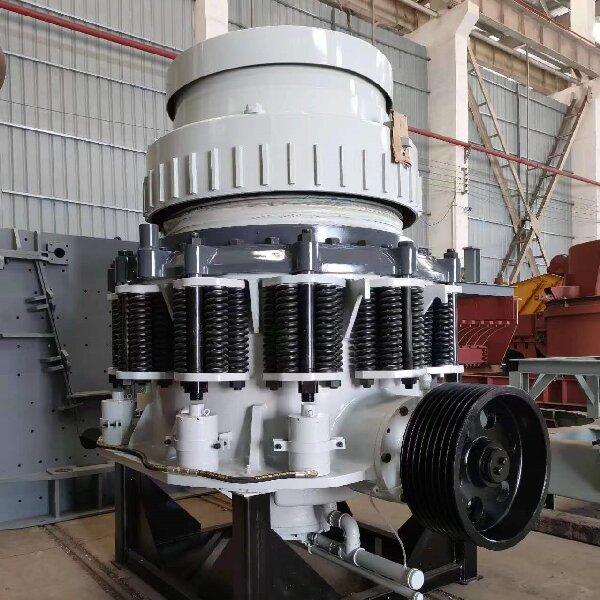

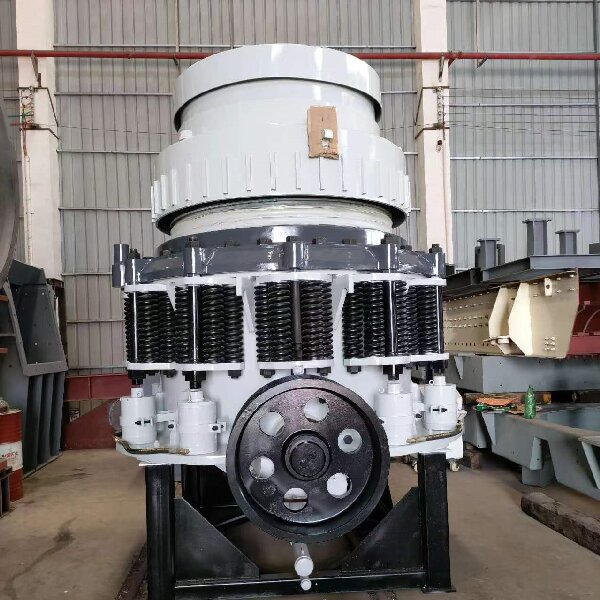

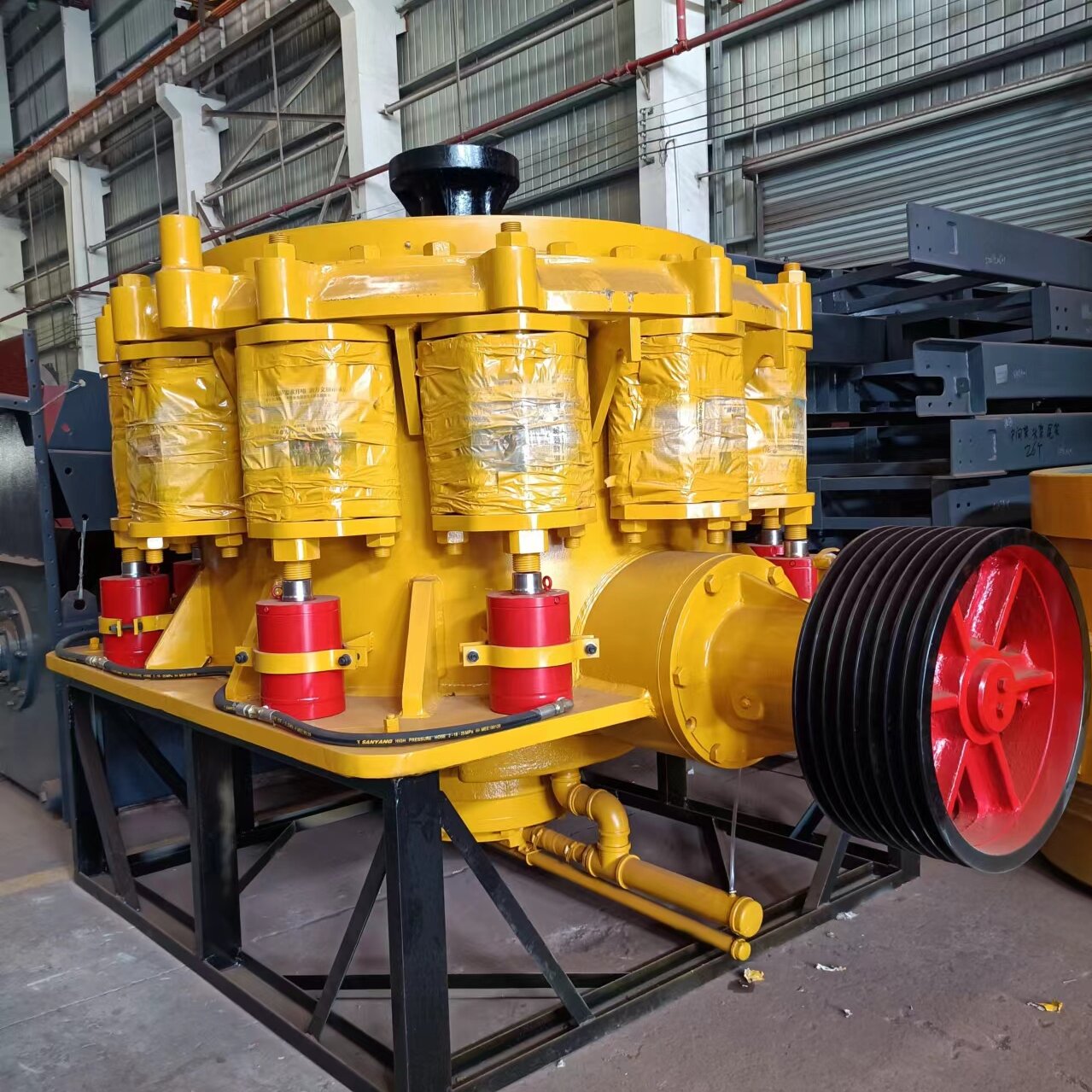

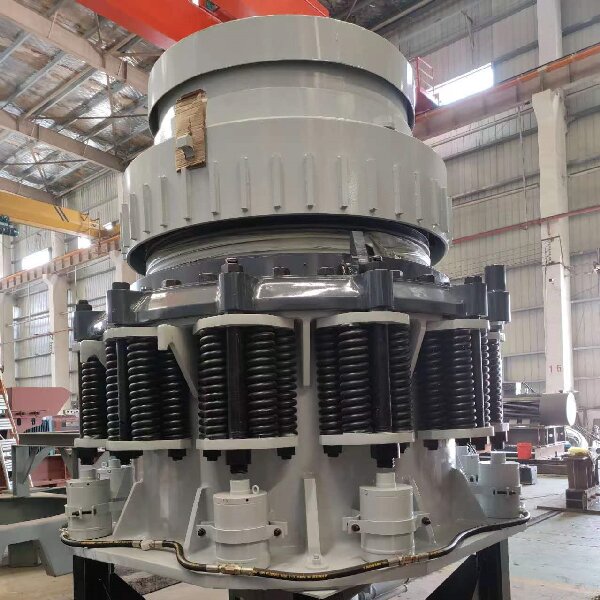

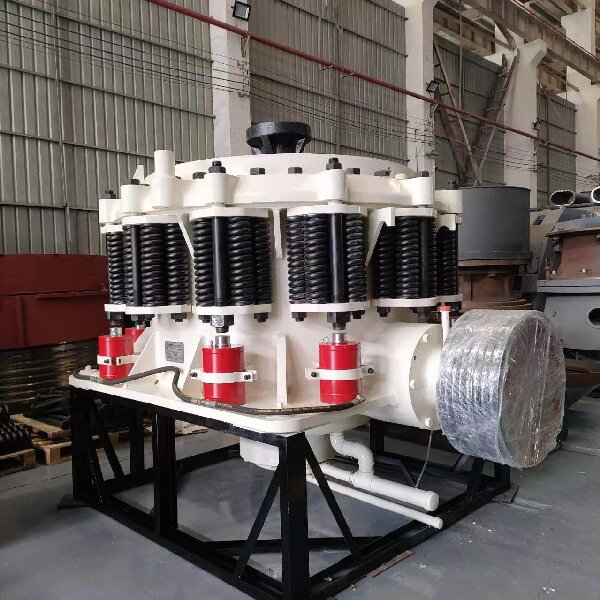

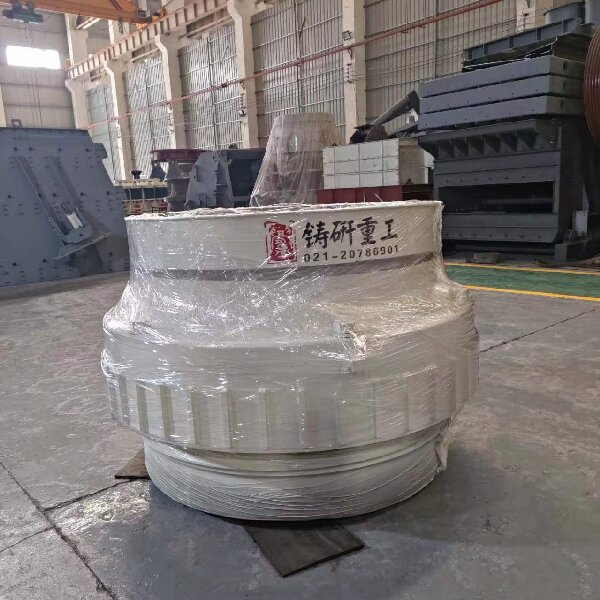

ZC Series Compound Cone Crusher

Product introduction:

ZC series compound cone crusher is a cone crusher with high performance level developed by absorbing advanced international technology of cone crushers, widely used in metallurgy, construction, hydropower, transportation, chemical industry, and building materials industry. It is suitable for crushing all kinds of ores and rocks with hard, medium hardness, and above. This compound crusher is a key piece of mining crushing equipment.

Product features:

1. Cone crusher body

The body of the cone crusher made by our Shanghai Zhuyan Heavy is a cast steel structure. The frame is welded with CO2 protection, and the stress relief annealing treatment is carried out after welding. Reinforcement is set at the high-stress point of the heavy load locations, making this compound crusher strong and durable. Compound crusher structural advantage is crucial for mining crushing equipment.

2. Drive device of the cone crusher

On both ends of the drive shaft of the cone crusher, cone roller bearings are equipped. The power drive is completed by a pair of heavy-duty bevel gears. The bearing block adopts a skeleton sealing ring to prevent oil leakage, ensuring the longevity of the mining crushing equipment.

3. Bearings and seals of the cone crusher

The labyrinth dust-proof ring seal ensures clean lubricating oil. In the cone crusher made by our Shanghai Zhuyan Heavy, there is an inner and outer eccentric sleeve of copper, a spherical base of steel, and a spherical copper piece. The dust-proof ring is held up by a spring placed in the spherical base. Compound crusher adjusts the meshing of the two sealing surfaces during operation. Other rotating parts of the cone crusher are made of rolling bearings of world-renowned brands, ensuring high reliability for the compound crusher.

4. Hydraulic adjustment mechanism

The hydraulic adjustment discharge port is convenient and fast, allowing accurate adjustment. The cone crusher made by Shanghai Zhuyan Heavy contains a hydraulic adjusting mechanism, Compound crusher quickly adjusts the size of the discharge port of the cone crusher. The universal structure adopts manual operation for the hydraulic cylinder, gap rotation, and bolt fastening. The automactic structure uses the oil motor to drive the gear pair, continuously rotating and adjusting the discharge port, with the small hydraulic cylinder assembly locked and fastened. compound crusher‘s feature enhances the flexibility and efficiency of the mining crushing equipment.

5. The cleaning mechanism to the hydraulic cavity

Quickly remove the aggregate and unbreakable materials in the crushing cavity, significantly shortening maintenance duration. The hydraulic cavity cleaning mechanism is the standard configuration of the cone crusher made by our Shanghai Zhuyan Heavy, completed by a group of cavity cleaning oil cylinders placed on the base plate of the body. The recommended cleaning distance is 75 mm. A set of cleaning cylinders used in fully automatic construction also acts as iron release protection, ensuring the compound crusher's reliability in mining crushing equipment operations.

6. The iron release protection

The spring locking device makes the crushing force stable and provides iron release protection. The universal construction of the cone crusher made by our Shanghai Zhuyan Heavy provides "the spring type" iron release protection. The fully automatic structure adopts a set of oil cylinders of energy storage and pressure retaining, which can conveniently adjust the release force of the iron and achieve timely release, a critical feature for mining crushing equipment.

7. Hydraulic power components

Hydraulic power components are used in the "hydraulic adjustment mechanism," "hydraulic cavity cleaning mechanism," and "hydraulic iron release protection mechanism" of the cone crusher made by our Shanghai Zhuyan Heavy, ensuring the compound crusher's operational efficiency and effectiveness in mining crushing equipment.

8. Lubrication system

The lubrication system is equipped with oil return and temperature protection devices and is interlocked with the main motor to protect the main machine from being damaged. The cone crusher made by our Shanghai Zhuyan Heavy uses a set of efficient, external lubrication systems, including oil pump, oil tank, and pipeline. The crusher will automatically shut down when the oil temperature is too high or the oil pressure is too low. A heater and cooler are also provided for heating or cooling the lubricating oil if necessary. The cooling of the large tank is divided into two types: water cooling and air cooling. Compound crusher functions are to cool the return oil from the crusher, re-circulate it, and enter the cone crusher. Customers can choose wind cooling or air cooling according to the geographical conditions of different places, making this compound crusher versatile mining crushing equipment.
