Product application scenarios:

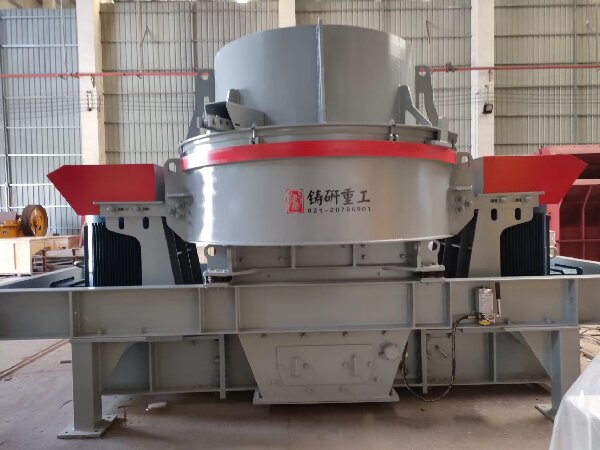

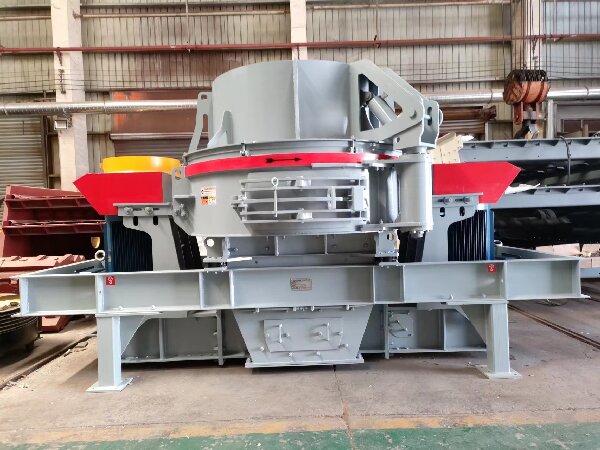

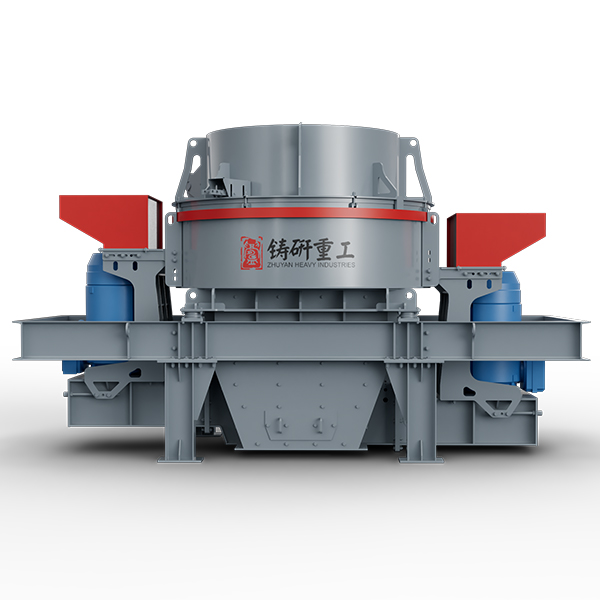

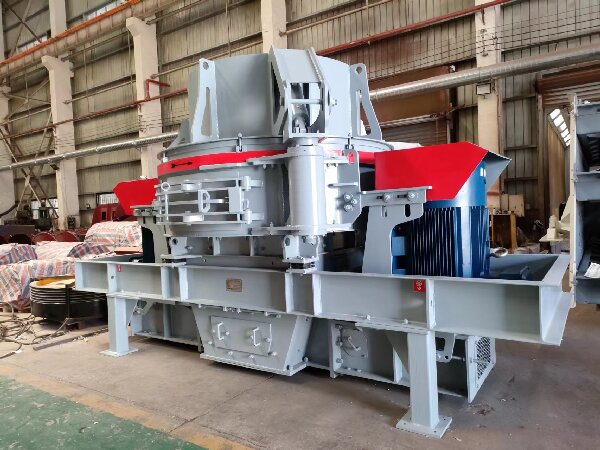

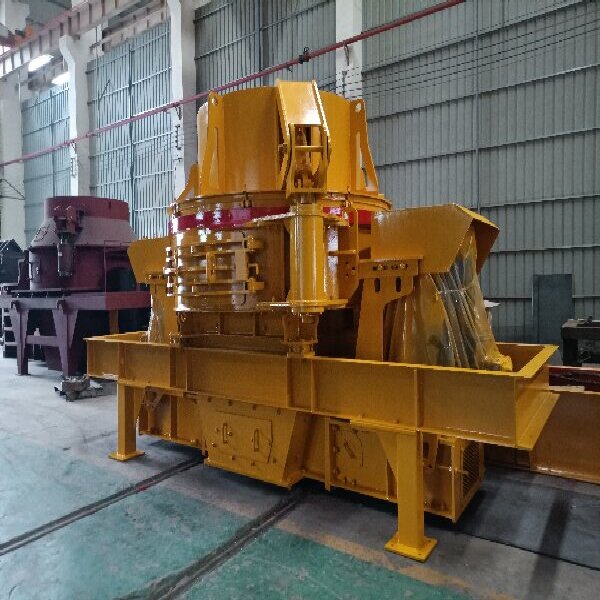

VB series vertical shaft impact crusher is a device that uses a high-speed rotating rotor to crush stones through self-collision and collision between materials. VB vertical shaft impact crusher is often used in artificial sand production lines as a fine crushing equipment to crush hard materials such as river pebbles, granite, basalt, etc.and produce fine sand that meets the standards for construction sand. VB impact crusher has good particle shape, reasonable grading, and adjustable fineness modulus. In the mining industry, VB impact crusher is used to crush various ores, such as iron ore, copper ore, gold ore, manganese ore, etc. VB impact crusher can effectively crush large pieces of ore into small particles suitable for the grinding process, thereby improving the efficiency of subsequent mineral processing processes.
Features:
1. VB series vertical shaft impact crusher combines a unique rotor design with an effective and precisely controlled bypass feeding system, which greatly improves production capacity and product quality so as to reduce the production cost and the consumption of the wear parts.
2. VB vertical shaft impact crusher after the wear parts optimized and designed is greatly improved on the convenience of maintenance and on shortening the replacement operation time of the waer parts. The perfect combination of automatic control and manual control system is formed to minimize the workload of equipment maintenance to the great extent.
3. The dual throwing combination of the rotor maximizes of VB impact crusher to the great extent wear time and protects the rotor body from excessive wear and tear. By means of the secondary overflow system matching with different rotor speeds we can completely control the particle type and the particle size distribution of the discharged material.
4. VB series vertical shaft impact crusher is the perfect combination of precision manufacturing and excellent design. Auxiliary PLC control system makes the easy operation of man-machine interface, and reduces the difficulty of operation in use and the training time to the operators.
5. VB impact crusher adopts thin oil lubrication system to provide excellent working environment for bearings and to obtain higher stability and longer service life.
6. VB impact crusher has been made a variety of safety testing and 2 control modes and a variety of safety protection measures to ensure that VB vertical shaft impact crusher can be safe, stable and long-term working. The soft starter is used to start the system, which ensures a smaller impact on the power grid system and a shorter startup time.
Product parameters:
Model | Power（kW） | Rotor speed（rpm） | Maximum feed size （mm） | Throughput （mtph） | Weight of crusher （kg） |
VB6000 | 160 | 1500-2500 | 35 | 100-200 | 6400 |
VB7000 | 250 | 1200-2100 | 42 | 180-240 | 8000 |
VB8000 | 200*2 | 1100-2000 | 50 | 200-500 | 12400 |
VB9000 | 250*2 | 1100-1800 | 60 | 260-560 | 17000 |
VB10000 | 315*2 | 1000-1600 | 65 | 350-750 | 25000 |
VB12000 | 400*2 | 800-1400 | 75 | 550-1200 | 28000 |
