Product description:

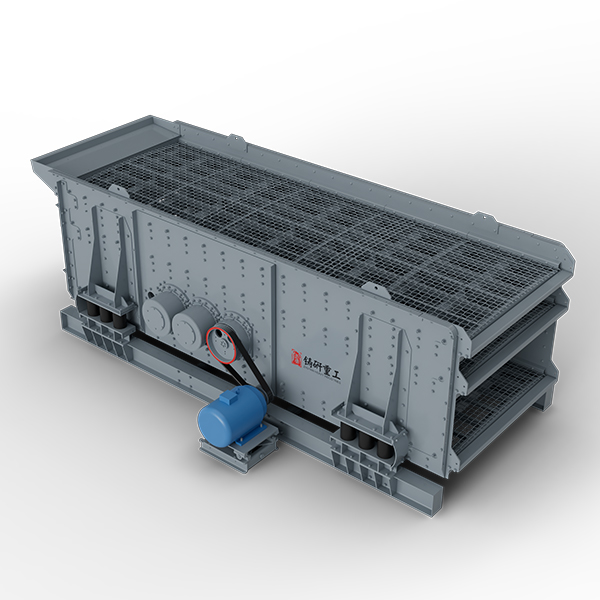

The TSH series three-axis elliptical vibrating screen is a high-efficiency screening equipment that combines the advantages of circular vibrating screens and linear vibrating screens. It adopts a three-axis drive design and can produce an ideal elliptical motion trajectory. This equipment is suitable for screening various materials, especially for materials that are difficult to screen. It is designed to increase processing power and screening efficiency while reducing power consumption and maintenance costs.
Working principle:
The working principle of the three-axis elliptical vibrating screen is mainly based on the elliptical motion generated by the three-axis drive. Materials enter the screen surface evenly through the feed port. The three-axis drive system starts and the three axes rotate synchronously, forcing the screen machine to produce stable elliptical vibration. Under the action of elliptical vibration, the materials are screened under the action of vibration force and inertia force on the screen surface. The vibration trajectory, amplitude and frequency are adjustable to ensure uniform distribution and effective screening of materials on the screen surface. The screened materials are discharged from different outlets according to their particle size to complete the screening process.
Features:
1.Three-axis elliptical vibrating screen combines the advantages of circular vibrating screen and linear vibrating screen. The running trajectory of the screen machine is elliptical, with smooth movement and low power consumption.
2. Double amplitude (15-19mm), vibration direction angle (30°-60°), and vibration frequency (645-875r/min) are adjustable, making adjustment easy and simple.
3. The materials are evenly distributed on the elliptical vibrating screen surface, the screening is smooth, and it is not easy to block holes and materials.

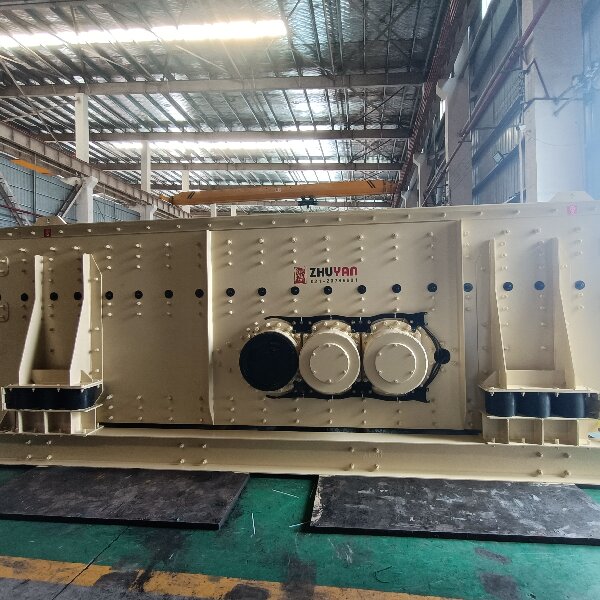

4. Three-axis elliptical vibrating screen forces synchronous vibration to ensure the stable working condition of the screen machine under high load conditions.
5. The three-axis drive of the elliptical vibrating screen improves the stress state of the screen frame, reduces the load on a single bearing, makes the side plates evenly stressed, reduces stress concentration points, and improves the stress conditions of the screen frame.
6. The three-axis drive improves the stress state of the vibrating screen frame, reduces the load on a single bearing, and extends the service life of the equipment.

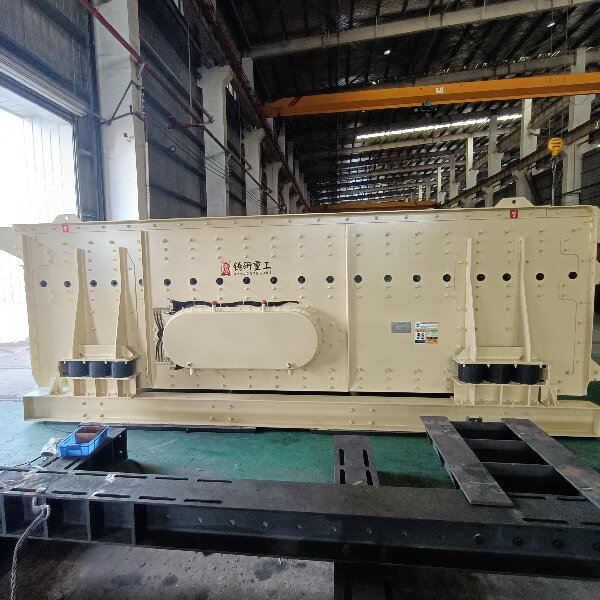

7. The vibrating screen adopts a horizontal installation design to effectively reduce the height of the unit and is suitable for large and medium-sized mobile screening units.

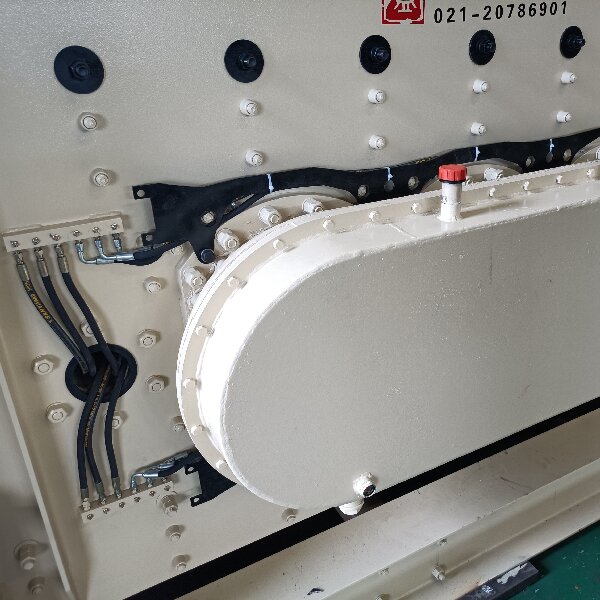

8. The bearings of the elliptical vibrating screen are lubricated with thin oil, which reduces the bearing temperature, increases the service life, and reduces maintenance frequency and cost.
