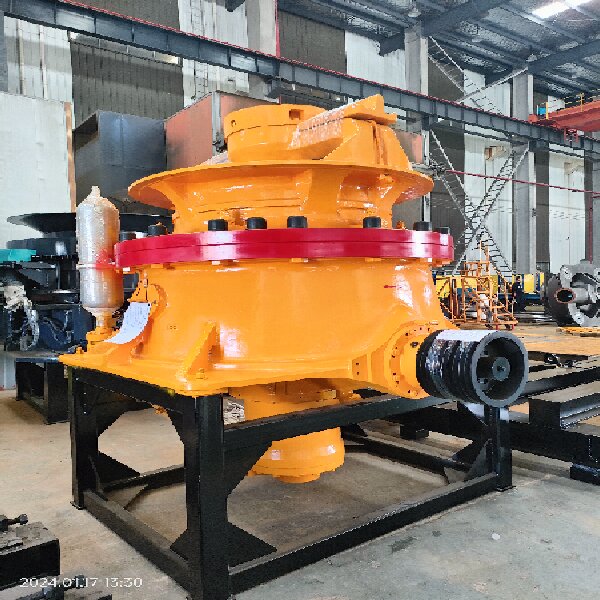

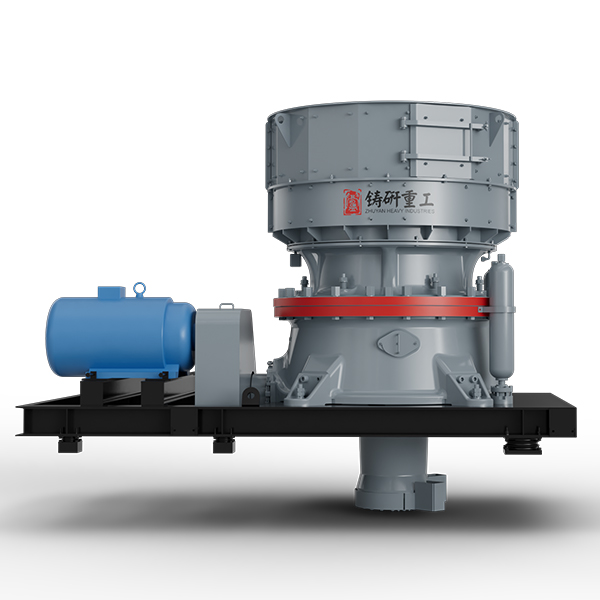

CS/CH Series Bottom Single Cylinder Cone Crusher

Brand: Zhuyan
Product origin: Shanghai, China
Delivery time: Depends on quantity
Supply capacity: 20 sets per year

1.CS/CH cone crusher adopts Heavy duty designed main frame with first class steel.
2.CS/CH single cylinder cone crusher adopts High manganess composite material liner, more hard-wearing.
3.CS/CH bottom single cylinder cone crusher adopts Huge diameter main shaft, more sturdy and durable.

Product introduction of CS/CH cone crusher:

Shanghai Zhuyan Heavy Industry Technology Co., Ltd has long term experience and advanced metallurgy technology in crusher liner (CS/CH cone crusher), CS/CH cone crusher can reduce the crusher unit wearing. The optional automatic control system help to feed fully and to adjust the liner gap automatically during the crusher running, and improved the crusher working efficiency, then the unit production cost will be more less. CS/CH single cylinder cone crusher has bigger feeding port size, then it is suitable for various crushing plant for best capacity, and CS/CH bottom single cylinder cone crusher is widely used in medium and superfine crushing, stationary and mobile crushing plant. Improved Crushing Speed, Eccentric Arm (Stroke) and Cavity design can bring the higher capacity and better products.

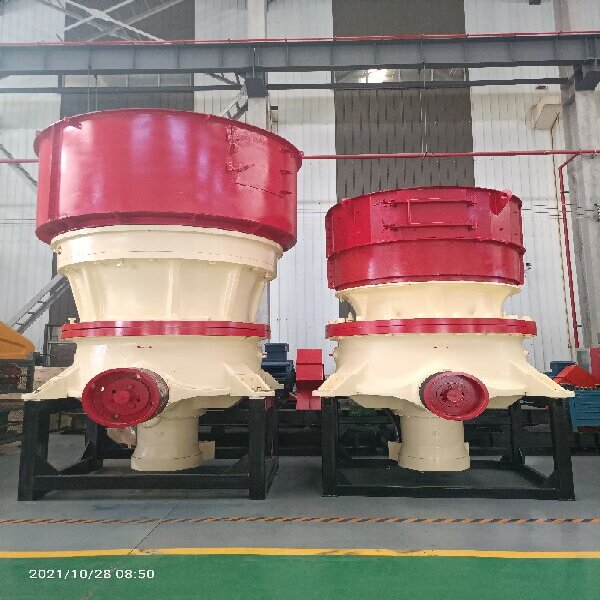

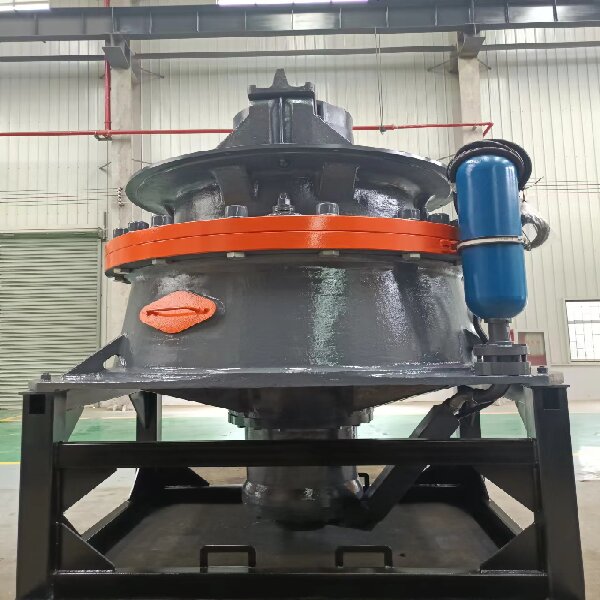

Cone Crusher Single Cylinder Cone Crusher

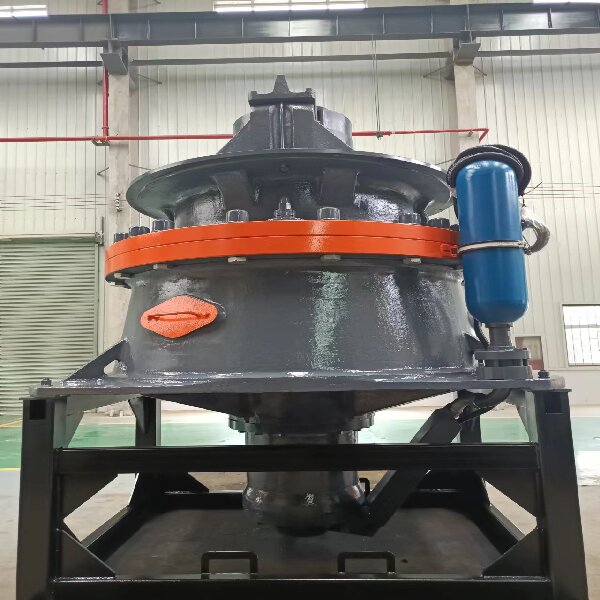

Bottom Single Cylinder Cone Crusher

Product features of CS/CH single cylinder cone crusher:

(1) CS/CH cone crusher has an ultra-large diameter main shaft and a heavy-duty main frame, making the equipment sturdy and durable.

(2) CS/CH single cylinder cone crusher adopts a high-frequency steep cone design, with a large throughput and a large feed inlet.

(3) CS/CH bottom single cylinder cone crusher is an ultra-large diameter cylinder floating shaft design, and low-pressure hydraulic pressure can also produce large crushing force.

(4) CS/CH cone crusher has a simple structure and is easy to maintain, light in weight, and suitable for installation on various fixed and mobile equipment.

(5) CS/CH bottom single cylinder cone crusher is equipped with a computer control system that can realize automatic control and remote operation.

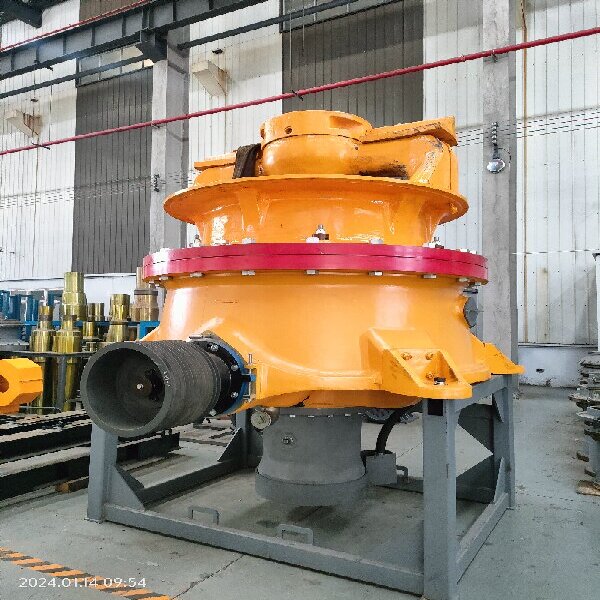

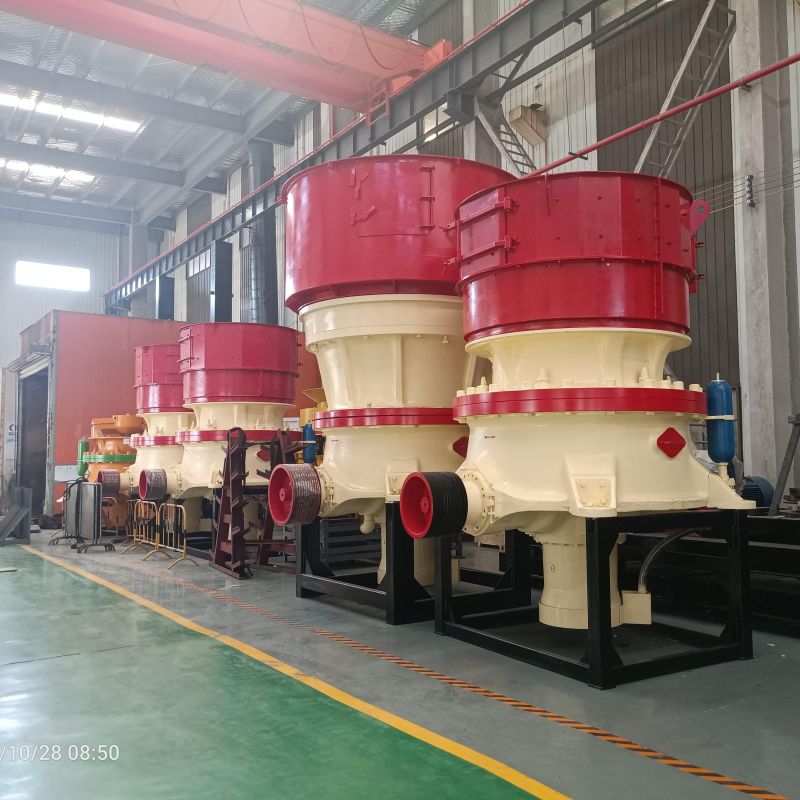

Single Cylinder Cone Crusher Bottom Single Cylinder Cone Crusher

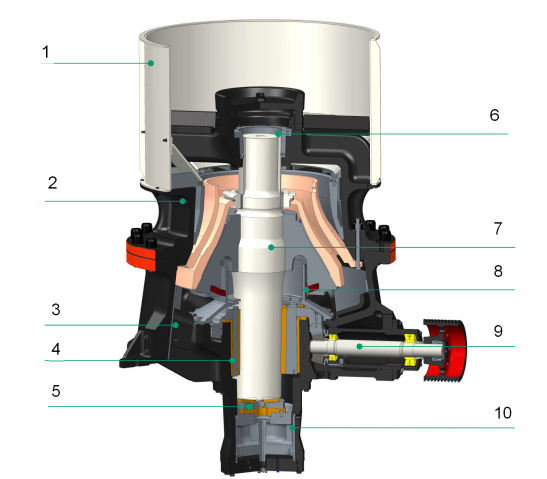

Product structure composition of CS/CH cone crusher:

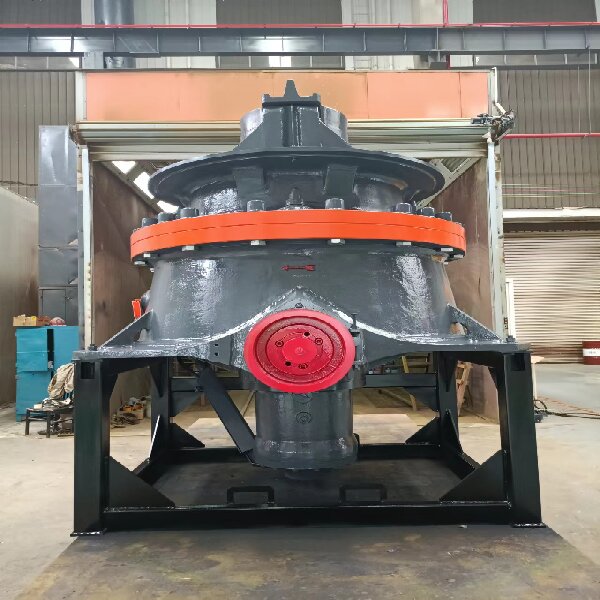

Cone Crusher

1.Feed hopper assembly.

2.Upper frame assembly.

3.Lower frame assembly.

4.Eccentric shaft assembly.

5.Direct push bearing assembly.

6.Upper bearing assembly.

7.Spindle cone assembly.

8.Dustproof seal assembly.

9.Drive shaft assembly.

10.Hydraulic cylinder assembly.

Product Parameters of CS/CH cone crusher：（CS/CH）

Model	Power (kW)		Max feedsize (mm)	Production capacity
Model	Power (kW)		Max feedsize (mm)	Nominal capacity in（mtph）with crusher running at CSS(mm)
				16	19	22	25	29	32	35	38	41	54	54	54
CS820	90	EC	240		90	100	130	180	195	165	170
CS820	90	C	200	75	80	110	145	130	130
CS830	160	EC	360			135	145	200	265	280	355	375	395	295	245
CS830	160	C	300		115	155	165	230	290	310	330	345	305

Model	Power (kW)		Max feedsize (mm)	Production capacity
Model	Power (kW)		Max feedsize (mm)	Nominal capacity in（mtph）with crusher running at CSS(mm)
				25	29	32	35	41	44	51	54	60	64	70	76
CS840	250	EC	450				290	446	563	524	456
CS840	250	C	400			299	381	511	448	333
CS860	315	EC	560			340	360	349	460	718	856	929	978	1050	983
CS860	315	C	500					420	618	788	823	892	822	631

Model	Power (kW)		Max feedsize (mm)	Production capacity
Model	Power (kW)		Max feedsize (mm)	Throughput(mtph) when the crusher running at CSS(mm)
				6	8	10	13	16	19	22	25	32	38	44	51
CH420	90	EC	135			55	100	105	115	120	130	145
		C	90			60	405	110	120	125	135	80
		M	65		50	85	90	90	70
		MF	50	40	75	80	80	60
		F	38	60	60	65	55	45
		EF	28	30-40 with 80% less than 4.5-5.5mm
CH430	160			6	8	10	13	16	19	22	25	32	38	44	51
		EC	190				125	170	185	196	210	240	240
		C	145			85	150	165	175	185	200	225	170
		MC	115			65	160	175	185	200	210	165
		M	90		75	100	150	165	175	185	175	120
		MF	75		70	120	130	145	145	130	105
		F	50	90	95	100	110	120	120	110	90
		EF	35	70-90 with 80% less than 5-5.6mm
CH440	250			6	8	10	13	16	19	22	25	32	38	44	51
		EC	215					200	276	294	313	357	395	384
		C	175				101	218	292	312	332	378	335	229
		MC	140				122	262	282	301	320	328	242
		M	110				187	278	298	318	339	281	194
		MF	85			114	227	245	263	281	299	248
		F	70		135	176	191	206	221	236	251	208
		EF	38	100-125 with 80% less than 6-7.5mm
CH660	315			6	8	10	13	16	19	22	25	32	38	44	51
		EC	275					177	338	436	A64	547	605	662	511
		C	215					190	367	480	501	582	643	512	353
		MC	175					253	426	455	484	552	499	364
		M	135					295	440	470	500	502	403
		MF	115				192	369	396	423	450	451	363
		F	85				304	328	352	376	400	401	323
		EF	65				293	316	298	290
CH870	500			13	16	19	22	25	32	38	44	51	57	64	70
		EC	300				588	849	968	1070	1172	1291	1393	1512	1331
		C	240			406	636	893	1018	1125	1232	1357	1464	1461	1286
		MC	195			440	723	837	954	055	1155	1272	1373	1370	1206
		M	155			563	786	836	953	1054	1154	1271	1372	1248	1098
		MF	100		424	716	765	814	928	942	789	702
		F	90	395	656	704	752	800	912	857	718
		EF	80	517	558	598	639	680	775	128	669
CH890	750			13	16	19	22	25	32	38	44	51	57	64	70
		EC	370					459	1309	1446	1584	1745	1883	2043	2181
		C	330				397	774	1404	1552	1700	1873	2020	2193	2140
		MC	300			513	852	1232	1404	1552	1700	1873	2020	2005	1739
		M	230		312	670	951	11061261	1261	1394	1526	1681	1814	1800	1564
		MF	160	204	514	690	921	980	1117	1235	1352	1490	1607	1396	1170
		F	120	289	669	838	895	952	1085	1165	1051	827	625
CH895	750			10	13	16	19	22	25	32	38	44	51	57	64
		EFX	100		423	666	715	763	812	926	994	896	705	533
		EF	85	246	585	631	678	724	770	878	970	1063	1170	1010	862
		EEF	75	475	564	608	653	697	742	846	855	761	580	417

Company Introduction:

Shanghai Zhuyan Heavy Industry Technology Co., Ltd is a professional manufacturer of mining machineries specializing in the production of crushing and screening machinery, integrating R&D, design, processing and manufacturing, sales and after-sales service.
